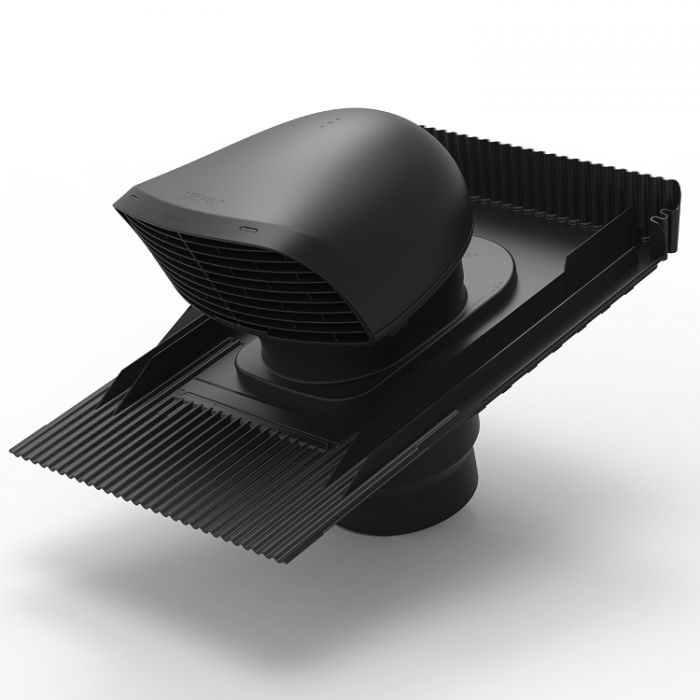

Design roof exhaust XL for tiled roofs 180/200mm Black
Design roof exhaust XL for tiled roofs 180/200mm Black
- Exhaust: 10 Pa at 404 m3/h – 20 Pa at 584 m3/h
- Intake: 10 Pa at 334 m3/h – 20 Pa at 467 m3/h
Design roof exhaust XL for tiled roofs
Installation with a lead-free universal roof tile Dia 180/200mm Black RAL9005.
Low pressure drop:
Connection diameter 180/200 mm
Material: polypropylene
Weather- and shockproof
Recyclable
Resists constant temperatures between -30 °C up to 80 °C
UV-protected
Built-in with a fierce lead-free flexible slab.
Lead replacement based on silicone with aluminium reinforcement
Remains strong and sustainable within a big range of temperatures: -30 °C/+180 °C (-22 °F/+356 °F)
UV-resistant
Does not react with roofing and does not cause stripes
Faster to process than lead or other lead replacement materials
Easy to crease by hand or by lead beaters
Harmless for people and environment and light weighted
Aesthetical design
Exhaust parallel with the roof (less fouling)
Removable louvre for cleaning, if necessary
Dimensions:
Roof exhaust: 369 x 301 x 456 mm (L x W x H)
Universal roof tile: 532 x 400 mm (L x W)
